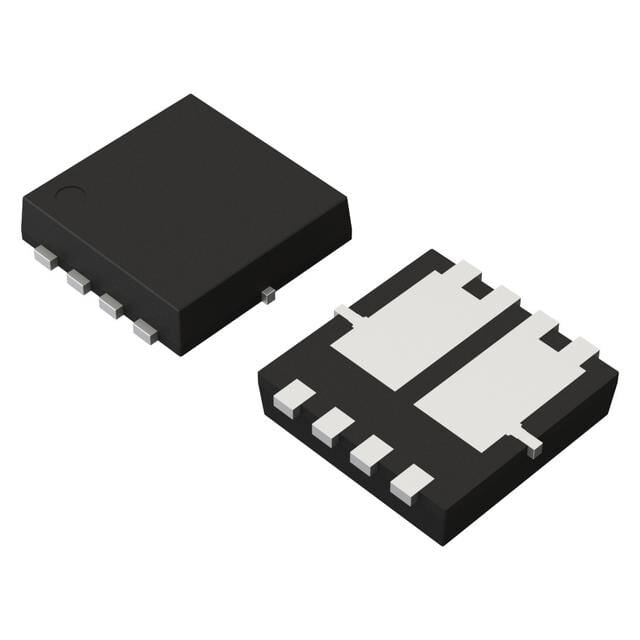

AM7532C
Analog Power Inc.
Package: Bulk
Description: MOSFET N/P-CH 30V DFN5X6
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Technology | MOSFET (Metal Oxide) |
|---|---|
| Part Status | Active |
| Power - Max | 2.5W (Ta) |
| Configuration | N and P-Channel Complementary |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK? SO-8 |
| Vgs(th) (Max) @ Id | 1V @ 250μA (Min) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 8-DFN (5x5) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
