AOT15B65MQ1
Alpha & Omega Semiconductor Inc.
Package: Tape & Reel (TR)
Description: IGBT 650V 30A TO-220
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 32 nC |
| Part Status | Active |
| Power - Max | 214 W |
| Mounting Type | Through Hole |

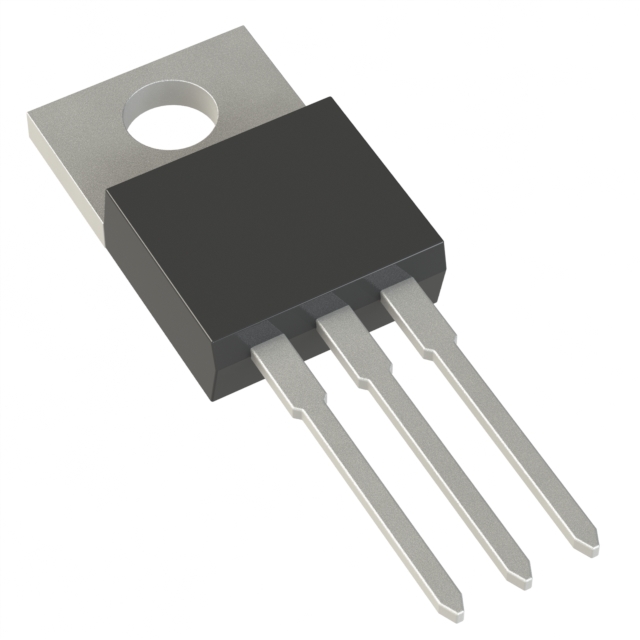

| Package / Case | TO-220-3 |
| Test Condition | 400V, 15A, 20Ohm, 15V |
| Switching Energy | 290μJ (on), 200μJ (off) |
| Td (on/off) @ 25°C | 15ns/94ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-220 |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 15A |
| Reverse Recovery Time (trr) | 106 ns |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
