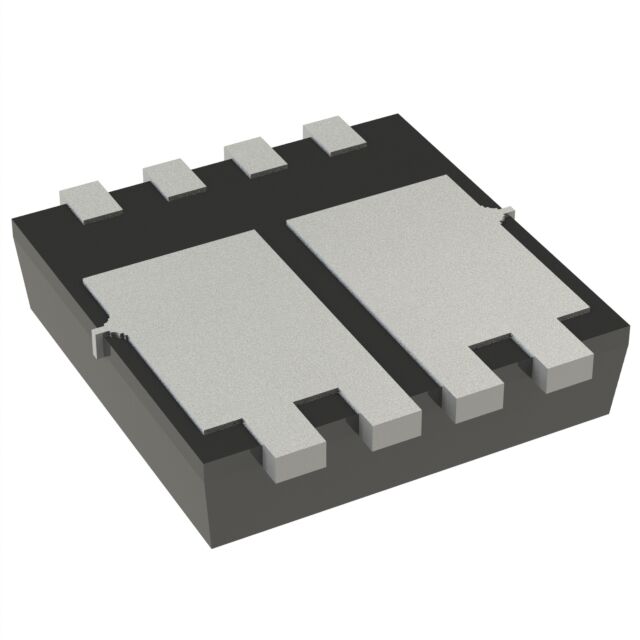

HT8KE5HTB1
ROHM Semiconductor
Package: Cut Tape (CT)
Description: 100V 6.5A, DUAL NCH+NCH, HSMT8,
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 2W (Ta), 13W (Tc) |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 210mOhm @ 2.5A, 10V |
| Supplier Device Package | 8-HSOP |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 105pF @ 50V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta), 6.5A (Tc) |
