IGB15N120S7ATMA1
Infineon Technologies
Package: Cut Tape (CT)
Description: IGBT TRENCH FS 1200V 34A TO263-3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 97 nC |
| Part Status | Active |
| Power - Max | 141 W |
| Mounting Type | Surface Mount |
| Qualification | - |

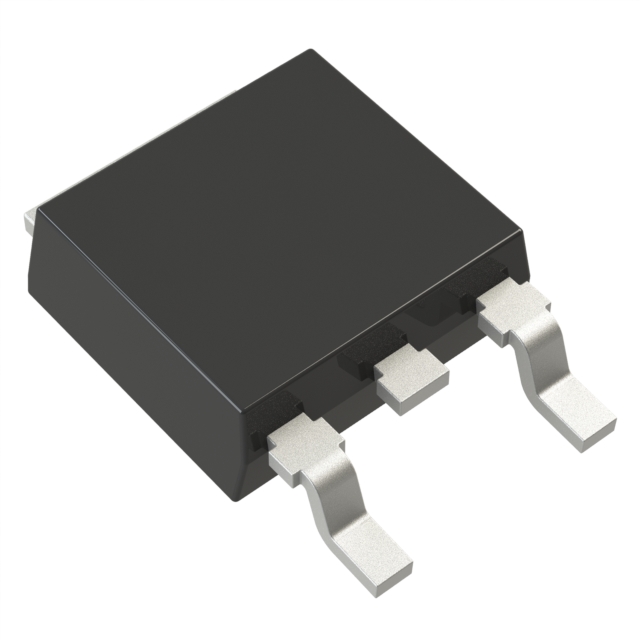

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Test Condition | 600V, 15A, 10Ohm, 15V |
| Switching Energy | 900μJ (on), 680μJ (off) |
| Td (on/off) @ 25°C | 16ns/156ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-TO263-3-2 |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 15A |
| Current - Collector (Ic) (Max) | 34 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
