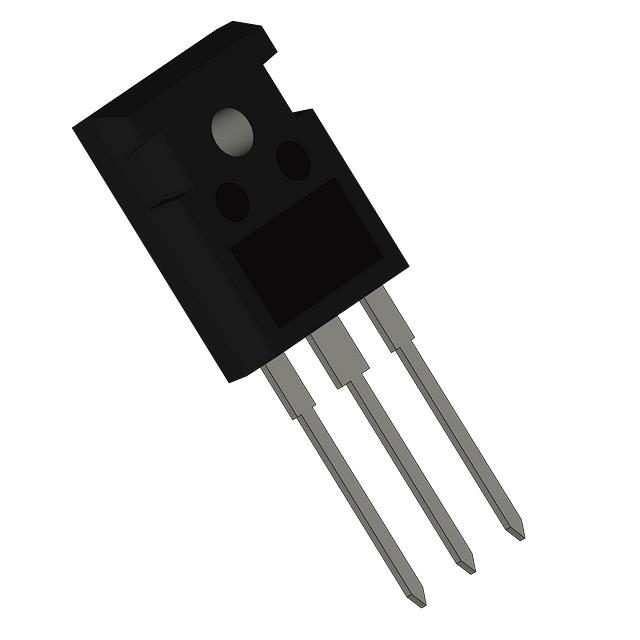

IRGP6650DPBF
Infineon Technologies
Package: Bulk
Description: IGBT 600V 80A TO-247AC
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | - |
|---|---|
| Input Type | Standard |
| Gate Charge | 75 nC |
| Part Status | Active |
| Power - Max | 306 W |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 400V, 35A, 10Ohm, 15V |
| Switching Energy | 300μJ (on), 630μJ (off) |
| Td (on/off) @ 25°C | 40ns/105ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247AC |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 35A |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
