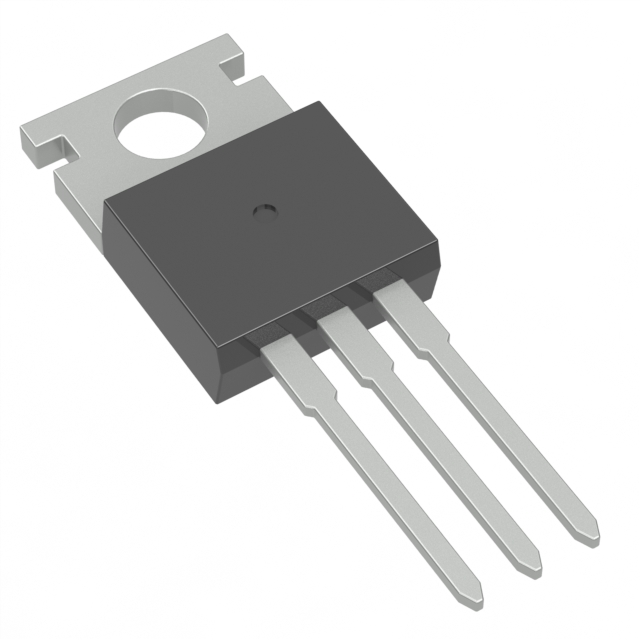

IXYP24N100A4
IXYS
Package: Tube
Description: IGBT PT 1000V 85A TO-220
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | PT |
|---|---|
| Input Type | Standard |
| Gate Charge | 44 nC |
| Part Status | Active |
| Power - Max | 375 W |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Test Condition | 800V, 24A, 10Ohm, 15V |
| Switching Energy | 3.5mJ (on), 2.3mJ (off) |
| Td (on/off) @ 25°C | 13ns/216ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-220 (IXYP) |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 24A |
| Reverse Recovery Time (trr) | 47 ns |
| Current - Collector (Ic) (Max) | 85 A |
| Current - Collector Pulsed (Icm) | 145 A |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
