NGW60T65M3DFPQ
Nexperia USA Inc.
Package: Tube
Description: NGW60T65M3DFP/SOT429-2/TO247-3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 217 nC |
| Part Status | Active |
| Power - Max | 431 W |
| Mounting Type | Through Hole |
| Qualification | - |

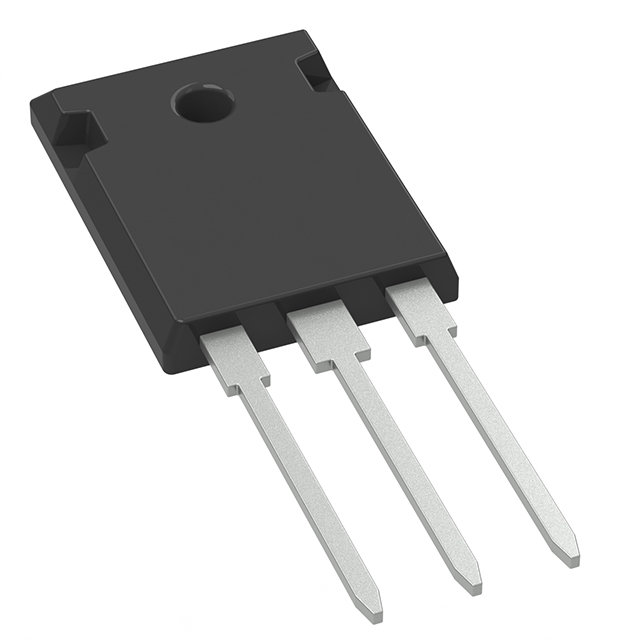

| Package / Case | TO-247-3 |
| Test Condition | 400V, 60A, 10Ohm, 15V |
| Switching Energy | 1.91mJ (on), 930μJ (off) |
| Td (on/off) @ 25°C | 36ns/270ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247-3L |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 60A |
| Reverse Recovery Time (trr) | 102 ns |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 180 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
