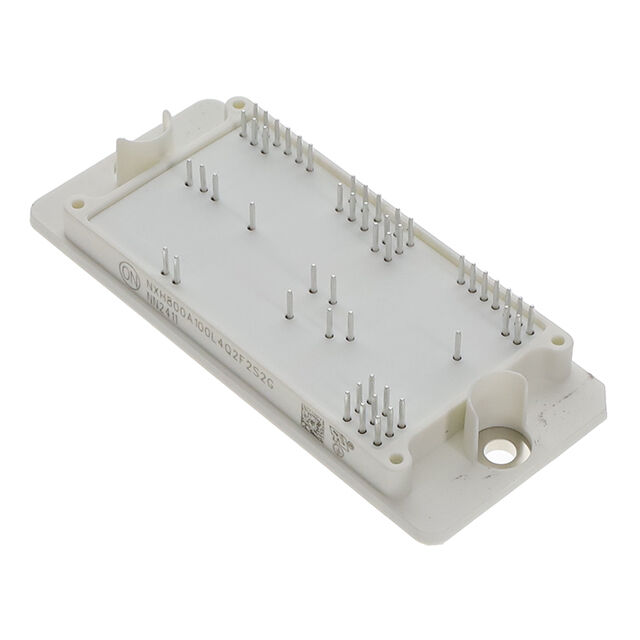

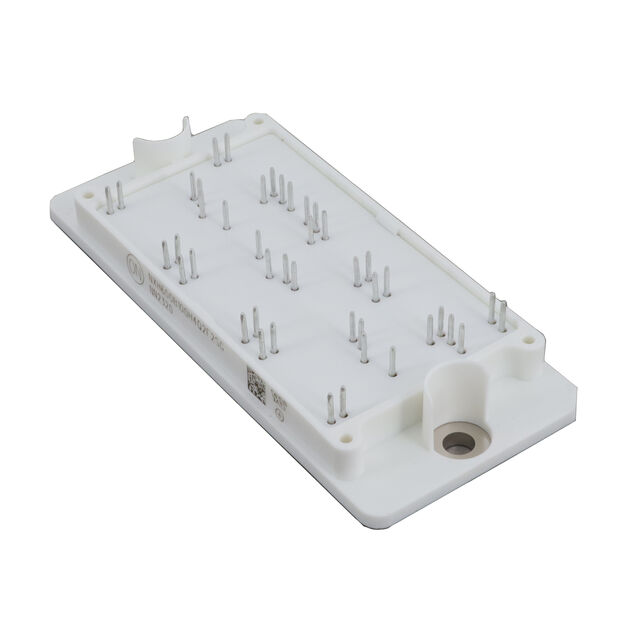

NXH800A100L4Q2F2S2G
onsemi
Package: Tray
Description: MASS MARKET GEN3 Q2PACK NEGATIVE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench Field Stop |
| Part Status | Last Time Buy |
| Power - Max | 714 W |
| Configuration | Three Level Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | 51-PIM/Q2PACK (93x47) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 400A |
| Current - Collector (Ic) (Max) | 309 A |
| Input Capacitance (Cies) @ Vce | 49.7 nF @ 20 V |
| Current - Collector Cutoff (Max) | 20 μA |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
