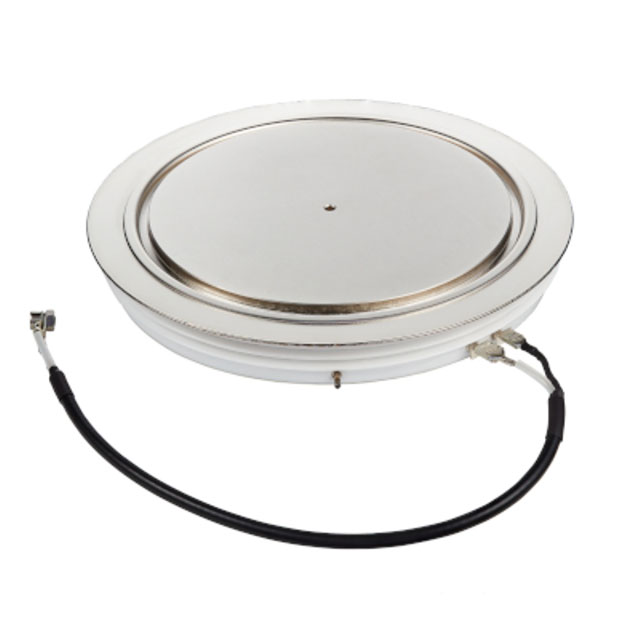

P3000ZL45X168HPSA1
Infineon Technologies
Package: Tray
Description: PRESS PACK IGBT
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench |
| Part Status | Active |
| Configuration | Single |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | TO-200AF |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | BG-P16826K-1 |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 3000A |
| Current - Collector (Ic) (Max) | 3000 A |
| Input Capacitance (Cies) @ Vce | 620 nF @ 25 V |
| Current - Collector Cutoff (Max) | 200 μA |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
