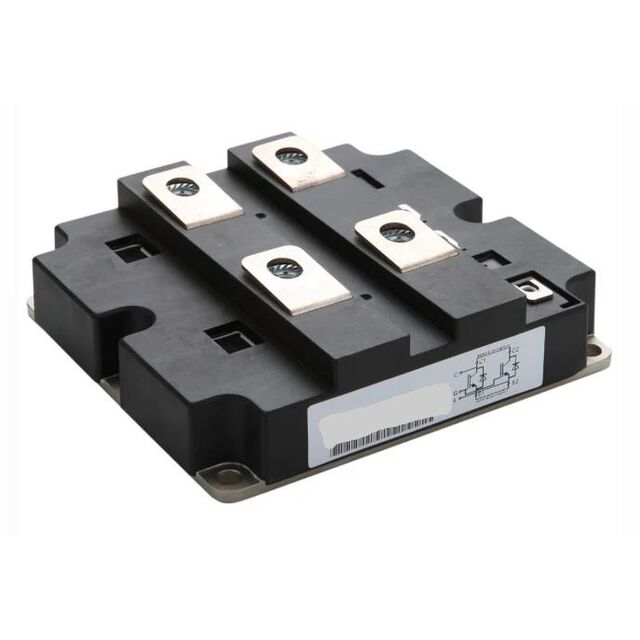

QS800SGL330A3S
Quest Semi
Package: Bag
Description: 3300v 800amp IGBT
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | - |
| Part Status | Obsolete |
| Power - Max | 9.62 kW |
| Configuration | Single Switch |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | - |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 800A |
| Current - Collector (Ic) (Max) | 1500 A |
| Input Capacitance (Cies) @ Vce | 125000 pF @ 25 V |
| Current - Collector Cutoff (Max) | 12 mA |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V |
