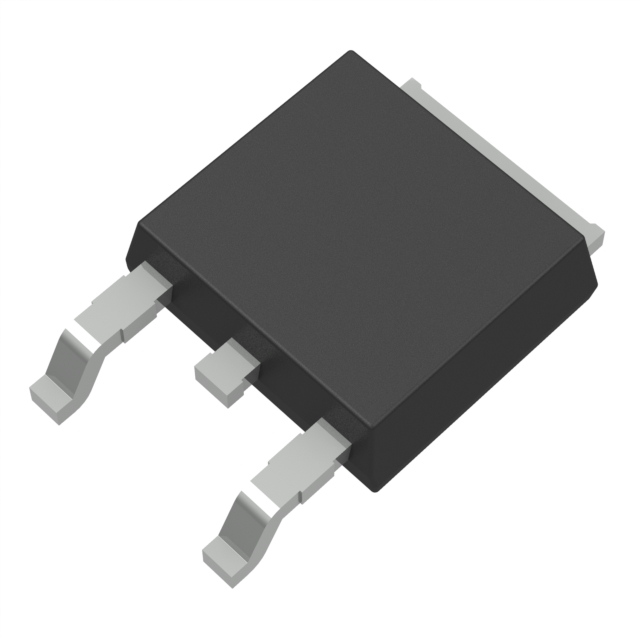

RGT8BM65DGTL1
ROHM Semiconductor
Package: Cut Tape (CT)
Description: IGBT TRENCH FS 650V 12A TO-252GE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 13.5 nC |
| Part Status | Active |
| Power - Max | 62 W |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Test Condition | 400V, 4A, 50Ohm, 15V |
| Switching Energy | - |
| Td (on/off) @ 25°C | 17ns/69ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-252GE |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 4A |
| Reverse Recovery Time (trr) | 40 ns |
| Current - Collector (Ic) (Max) | 12 A |
| Current - Collector Pulsed (Icm) | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
