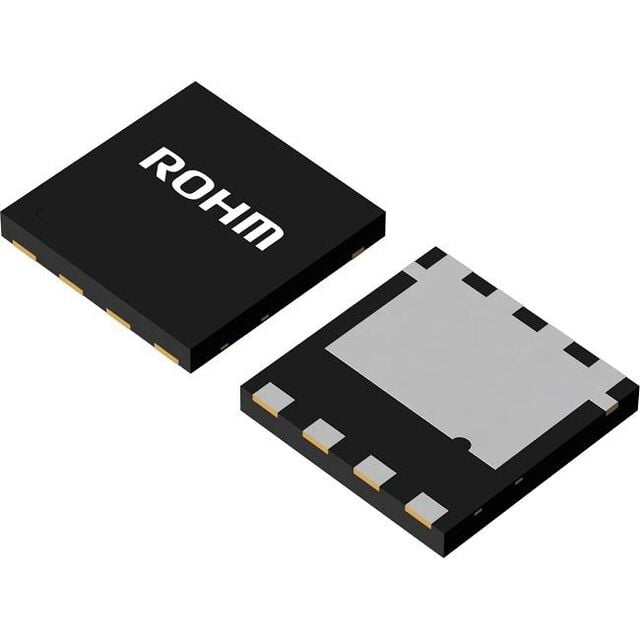

RY7P250BMTBC
ROHM Semiconductor
Package: Cut Tape (CT)
Description: NCH 100V 300A DFN8080-8S WIDE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| FET Type | N-Channel |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.86mOhm @ 50A, 10V |
| Power Dissipation (Max) | 340W (Tc) |
| Supplier Device Package | DFN8080T8LSHAAI |
| Gate Charge (Qg) (Max) @ Vgs | 240 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15900 pF @ 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 250A (Ta), 300A (Tc) |
