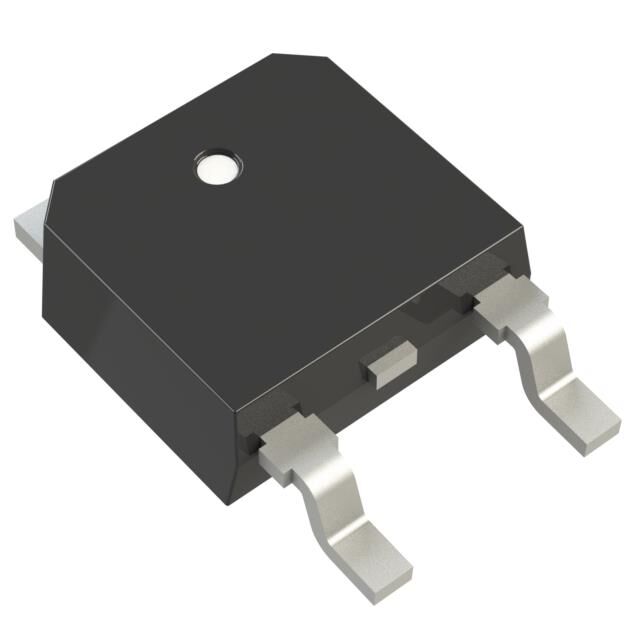

STGD4H60DF
STMicroelectronics
Package: Cut Tape (CT)
Description: IGBT TRENCH FS 600V 8A DPAK
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | Trench Field Stop |
|---|---|
| Input Type | Standard |
| Gate Charge | 35 nC |
| Part Status | Active |
| Power - Max | 75 W |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Test Condition | 400V, 3A, 47Ohm, 15V |
| Switching Energy | 68μJ (on), 45μJ (off) |
| Td (on/off) @ 25°C | 35ns/121ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | DPAK (TO-252) type C2 |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 3A |
| Reverse Recovery Time (trr) | 73 ns |
| Current - Collector (Ic) (Max) | 8 A |
| Current - Collector Pulsed (Icm) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
