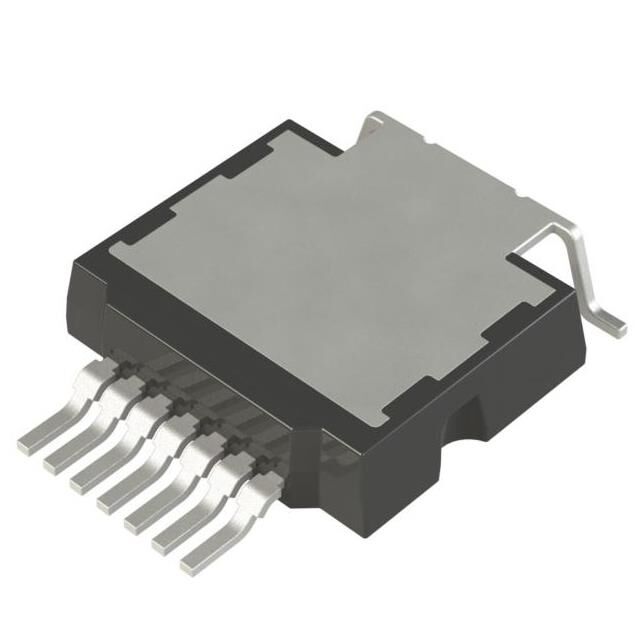

STGHU30M65DF2AG
STMicroelectronics
Package: Cut Tape (CT)
Description: IGBT TRENCH FS 650V 84A HU3PAK
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 90 nC |
| Part Status | Active |
| Power - Max | 441 W |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Switching Energy | 210μJ (on), 1.147mJ (off) |
| Td (on/off) @ 25°C | 22ns/151ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | HU3PAK |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Reverse Recovery Time (trr) | 223 ns |
| Current - Collector (Ic) (Max) | 84 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
