VDM610N180LSA
VIITOR SEMICONDUCTOR CO., LTD
Package: Tape & Reel (TR)
Description: 100V, Dual N Channel MOSFET, RDS
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Part Status | Active |
| Power - Max | 35W |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |

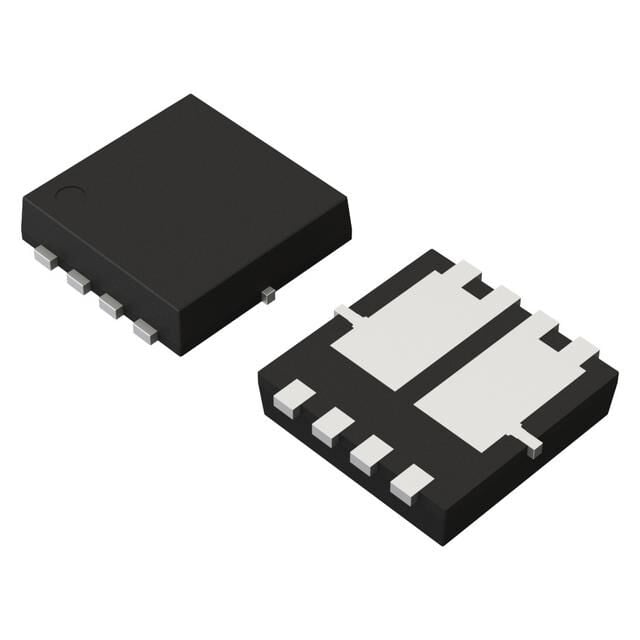

| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 3V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 20A, 10V |
| Supplier Device Package | DFN5060 Dual |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 1065pF @ 50V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
