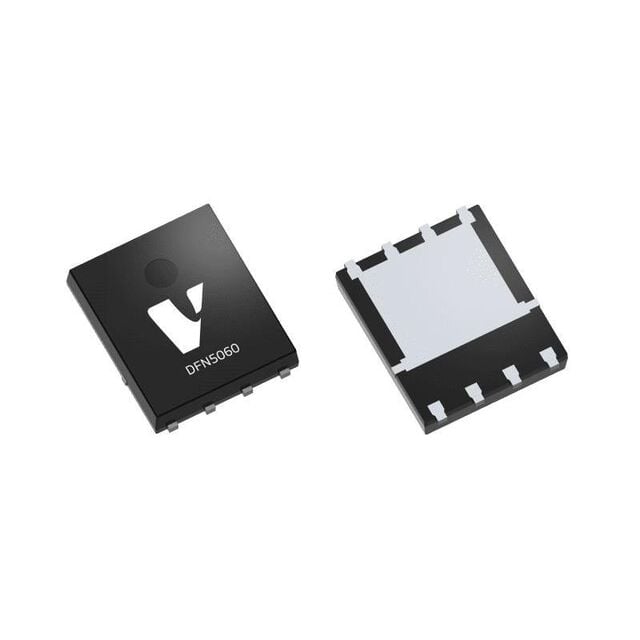

VTM503P080LSA
VIITOR SEMICONDUCTOR CO., LTD
Package: Tape & Reel (TR)
Description: -30V, Single P MOSFET, RDS(ON) 8
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| FET Type | P-Channel |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 20A, 10V |
| Power Dissipation (Max) | 41.7W |
| Supplier Device Package | DFN5060 |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3636 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 55A (Tc) |
