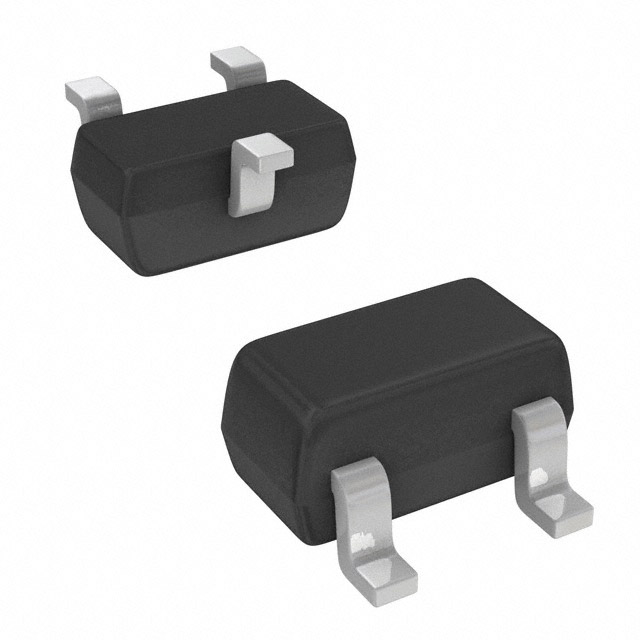

2SC5006-A
CEL
Package: Strip
Description: RF TRANS NPN 12V 4.5GHZ
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 9dB |
|---|---|
| Part Status | Obsolete |
| Power - Max | 125mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-523 |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 4.5GHz |
| Supplier Device Package | - |
| Noise Figure (dB Typ @ f) | 1.2dB @ 1GHz |
| Current - Collector (Ic) (Max) | 100mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 7mA, 3V |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
