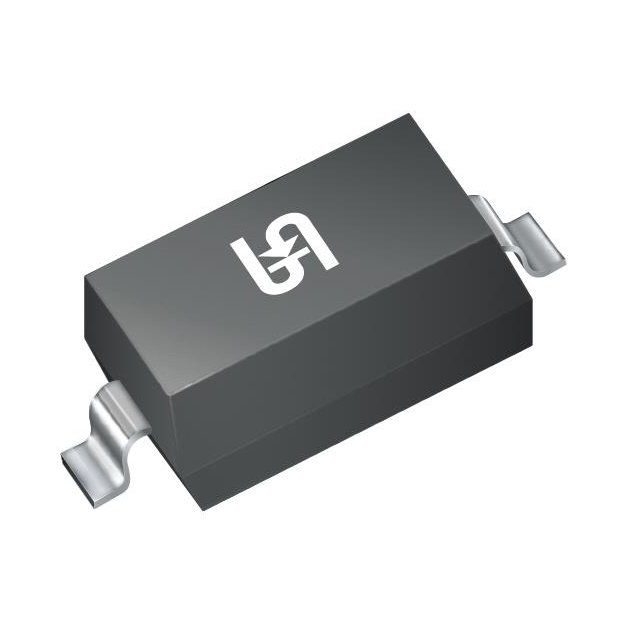

BAT43WSH RRG
Taiwan Semiconductor Corporation
Package: Cut Tape (CT)
Description: SOD-323, 30V, 0.2A, SCHOTTKY DIO
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | SC-76, SOD-323 |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Supplier Device Package | SOD-323 |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
