BC847C-A
VIITOR SEMICONDUCTOR CO., LTD
Package: Tape & Reel (TR)
Description: NPN General purpose Transistor,
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Part Status | Active |
| Power - Max | 300 mW |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |

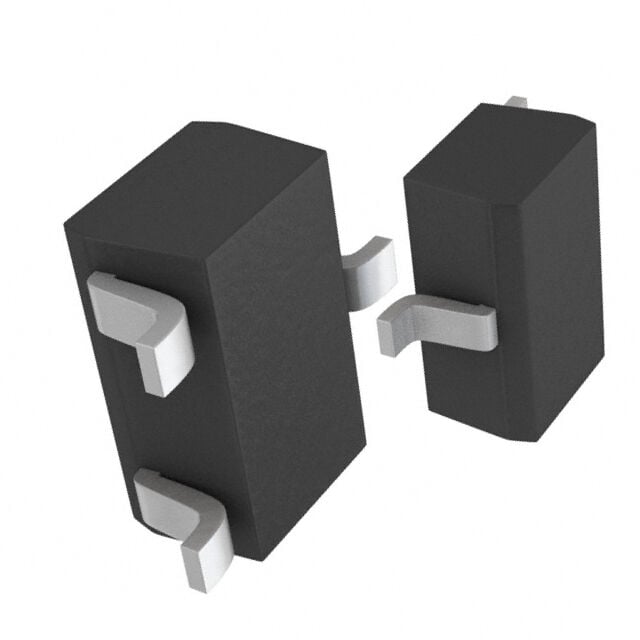

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Transition | 300MHz |
| Supplier Device Package | SOT-23 |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector (Ic) (Max) | 100 mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 420 @ 2mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
