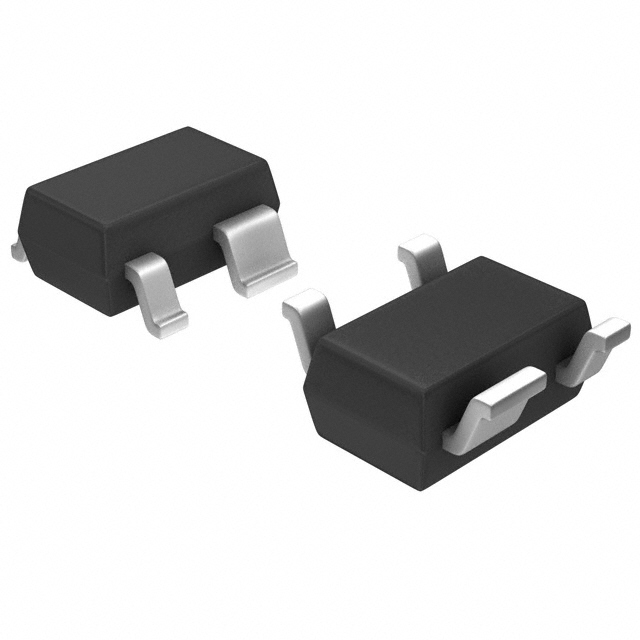

BFP780H6327XTSA1
Infineon Technologies
Package: Tape & Reel (TR)
Description: RF TRANS NPN 6.1V 900MHZ SOT-343
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 27dB |
|---|---|
| Part Status | Obsolete |
| Power - Max | 600mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-82A, SOT-343 |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 900MHz |
| Supplier Device Package | PG-SOT343-4-1 |
| Noise Figure (dB Typ @ f) | 1.2dB ~ 2.4dB @ 900MHz ~ 3.5GHz |
| Current - Collector (Ic) (Max) | 120mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 85 @ 90mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 6.1V |
