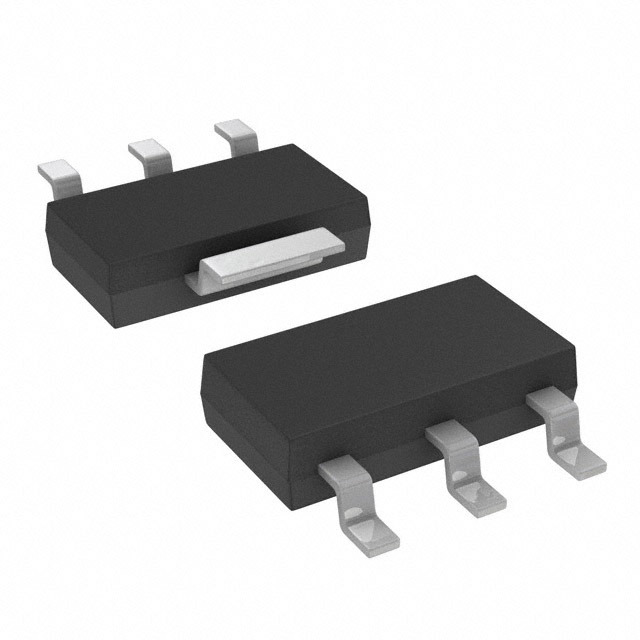

BFU590GX
NXP USA Inc.
Package: Cut Tape (CT)
Description: RF TRANS NPN 12V 8.5GHZ SC-73
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 8dB |
|---|---|
| Part Status | Last Time Buy |
| Power - Max | 2W |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Transistor Type | NPN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Frequency - Transition | 8.5GHz |
| Supplier Device Package | SC-73 |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 200mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 80mA, 8V |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
