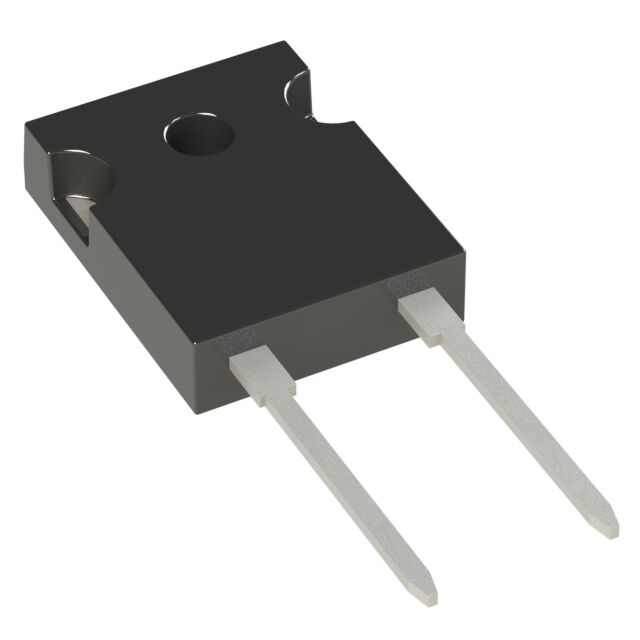

DCK20I650HA
IXYS
Package: Tube
Description: SIC SCHOTTKY DIODE 650V 20A TO-2
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-247-2 |
| Capacitance @ Vr, F | 716pF @ 1V, 1MHz |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 100 μA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 50.1A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V @ 20 A |
