HBDM60V600X-7
Diodes Incorporated
Package: Cut Tape (CT)
Description: TRANS NPN/PNP 60V/80V SOT363
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Part Status | Active |
|---|---|
| Power - Max | 200mW |
| Mounting Type | Surface Mount |

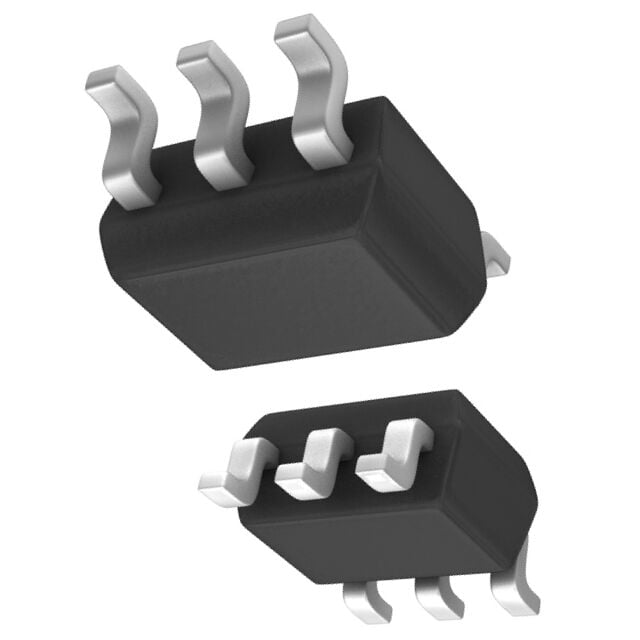

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Transition | - |
| Supplier Device Package | SOT-363 |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 10mA, 100mA / 500mV @ 50mA, 500mA |
| Current - Collector (Ic) (Max) | 600mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA, 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 10mA, 1V / 100 @ 150mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 60V, 80V |
