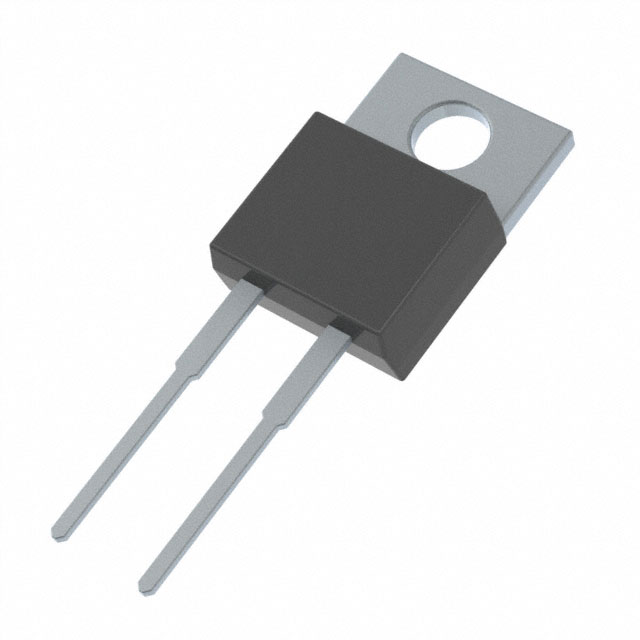

MBR1060S-BP
MCC (Micro Commercial Components)
Package: Tube
Description: SCHOTTKY BARRIER RECTIFIER,TO-22
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-220-2 |
| Capacitance @ Vr, F | 450pF @ 4V, 1MHz |
| Supplier Device Package | TO-220AC |
| Current - Reverse Leakage @ Vr | 100 μA @ 60 V |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 10A |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 10 A |
