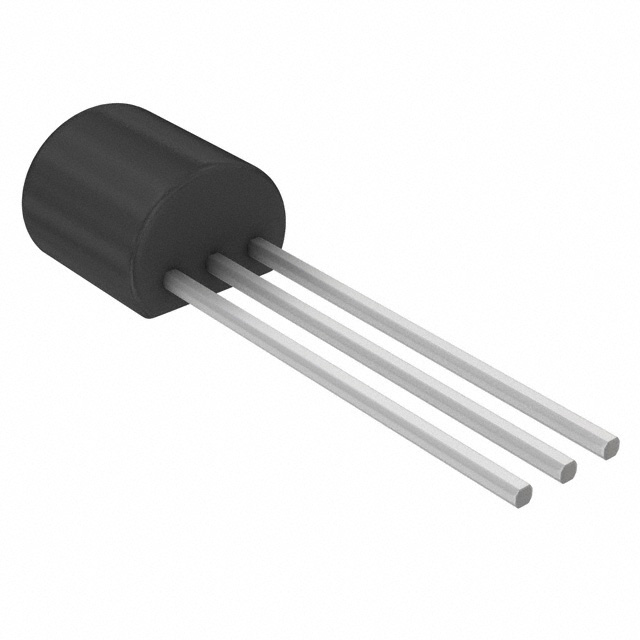

MCR22-006
onsemi
Package: Bulk
Description: THYRISTOR SCR 1.5A 400V TO-92
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| SCR Type | Sensitive Gate |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Voltage - Off State | 400 V |
| Supplier Device Package | TO-92 (TO-226) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 μA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 1.5 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 15A @ 60Hz |
