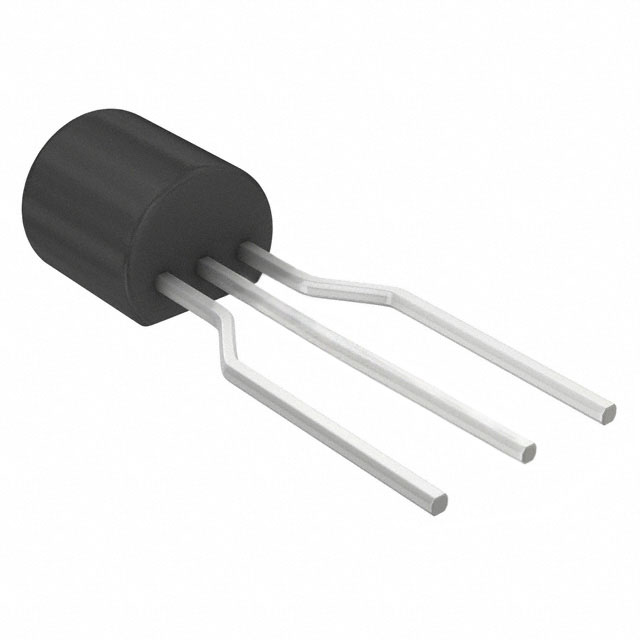

MPSH10-AP
MCC (Micro Commercial Components)
Package: Tape & Box (TB)
Description: RF TRANS NPN 25V 650MHZ TO-92
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | - |
|---|---|
| Part Status | Obsolete |
| Power - Max | 350mW |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Frequency - Transition | 650MHz |
| Supplier Device Package | TO-92 |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 4mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 25V |
