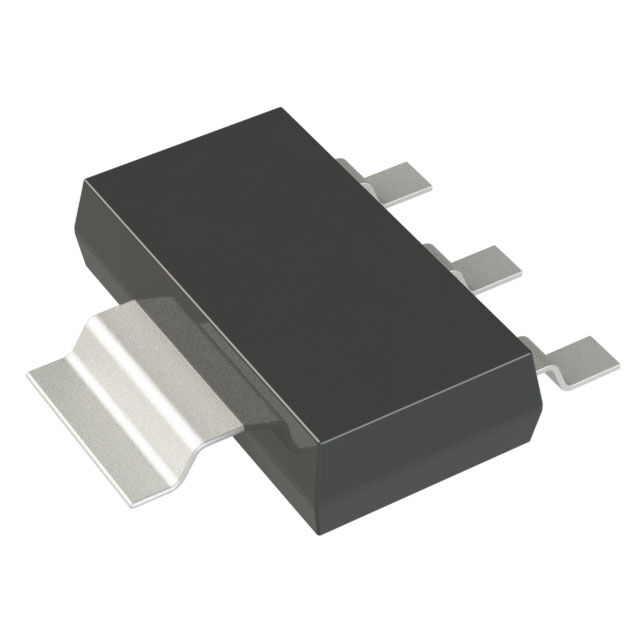

S6X8TS3RP
IXYS
Package: Cut Tape (CT)
Description: 600V SENSITIVE SCR IN SOT223 PAC
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| SCR Type | Sensitive Gate |
|---|---|
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Voltage - Off State | 800 V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | SOT-223 |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Off State (Max) | 3 μA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Gate Trigger (Igt) (Max) | 200 μA |
| Current - On State (It (AV)) (Max) | 510 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 10A |
