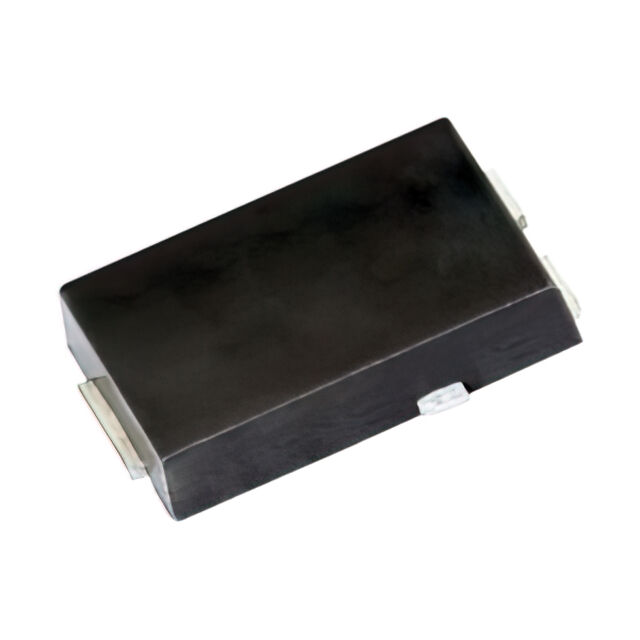

V20P103SHM3/H
Vishay General Semiconductor - Diodes Division
Package: Cut Tape (CT)
Description: RECTIFIER, TRENCH SCHOTTKY, 20A,
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-277, 3-PowerDFN |
| Capacitance @ Vr, F | 2350pF @ 4V, 1MHz |
| Supplier Device Package | TO-277A (SMPC) |
| Current - Reverse Leakage @ Vr | 1.2 mA @ 100 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 4.3A |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 730 mV @ 20 A |
