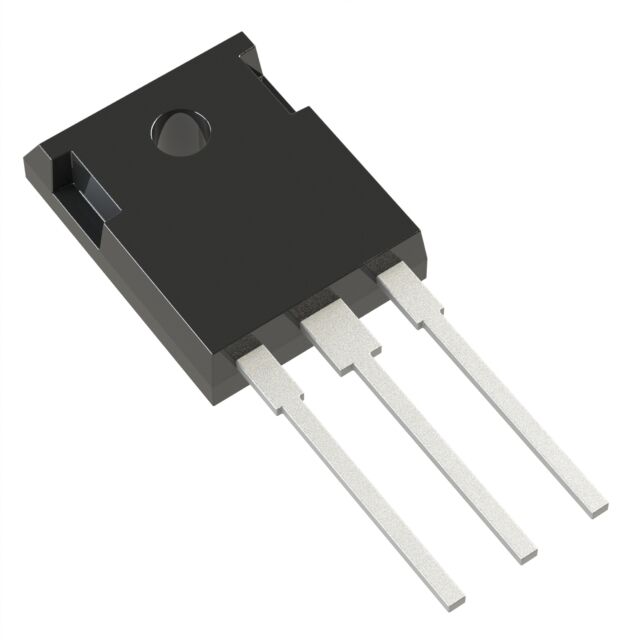

CLA40E1200NHB
IXYS
Package: Tube
Description: THYRISTOR - TO247
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| SCR Type | Standard Recovery |
|---|---|
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Voltage - Off State | 1.2 kV |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | TO-247 (IXTH) |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Off State (Max) | 10 μA |
| Voltage - On State (Vtm) (Max) | 1.55 V |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - On State (It (AV)) (Max) | 40 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.7 V |
| Current - On State (It (RMS)) (Max) | 63 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 520A, 560A |
