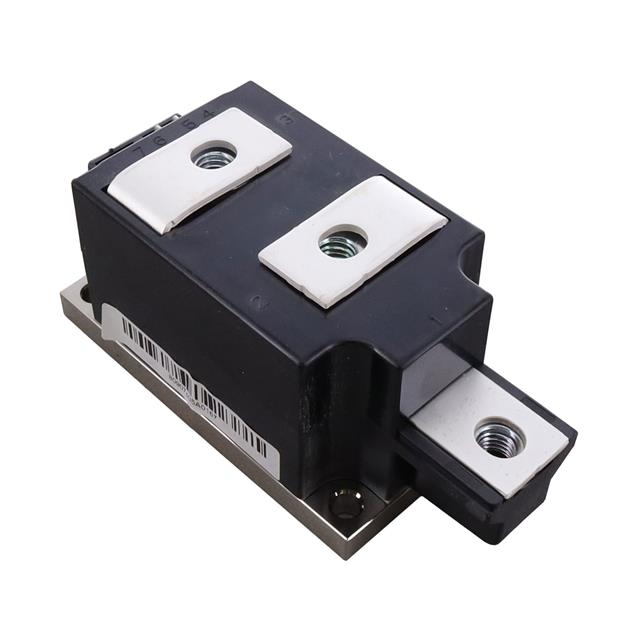

ETT580N16P60HPSA1
Infineon Technologies
Package: Tray
Description: SCR MODULE 1.6KV 700A MODULE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Structure | Series Connection - All SCRs |
|---|---|
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | -40°C ~ 135°C (TC) |
| Number of SCRs, Diodes | 2 SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - On State (It (AV)) (Max) | 586 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 700 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16500A @ 50Hz |
