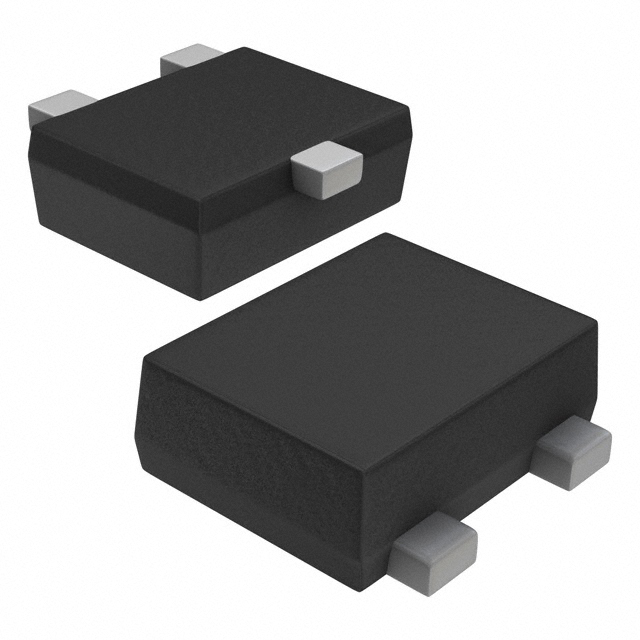

NSVF3007SG3T1G
onsemi
Package: Tape & Reel (TR)
Description: RF TRANS NPN 12V 8GHZ 3MCPH
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 12dB |
|---|---|
| Grade | Automotive |
| Part Status | Obsolete |
| Power - Max | 350mW |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 3-SMD, Flat Leads |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Frequency - Transition | 8GHz |
| Supplier Device Package | SC-70FL/MCPH3 |
| Noise Figure (dB Typ @ f) | 1.8dB @ 1GHz |
| Current - Collector (Ic) (Max) | 30mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
