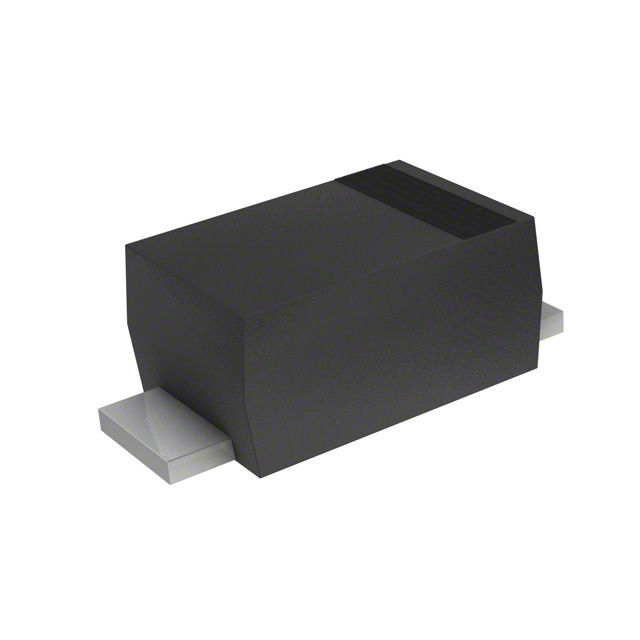

S4D02120T
SMC Diode Solutions
Package: Cut Tape (CT)
Description: SIC SCHOTTKY DIODES SOD-123 1200
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SOD-123F |
| Capacitance @ Vr, F | 160pF @ 0V, 1MHz |
| Supplier Device Package | SOD-123FL |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 10 μA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 5A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 2 A |
