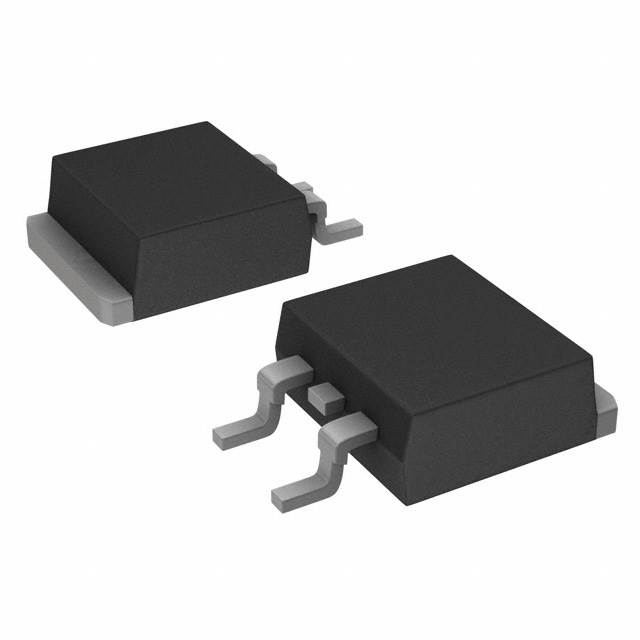

TYN30B-800TJ
WeEn Semiconductors
Package: Tape & Reel (TR)
Description: TYN30B-800T/TO263/REEL 13" Q1/T1
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| SCR Type | Standard Recovery |
|---|---|
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Voltage - Off State | 800 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | D2PAK |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 500 nA |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - On State (It (AV)) (Max) | 19 A |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V |
| Current - On State (It (RMS)) (Max) | 30 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 350A, 385A |
