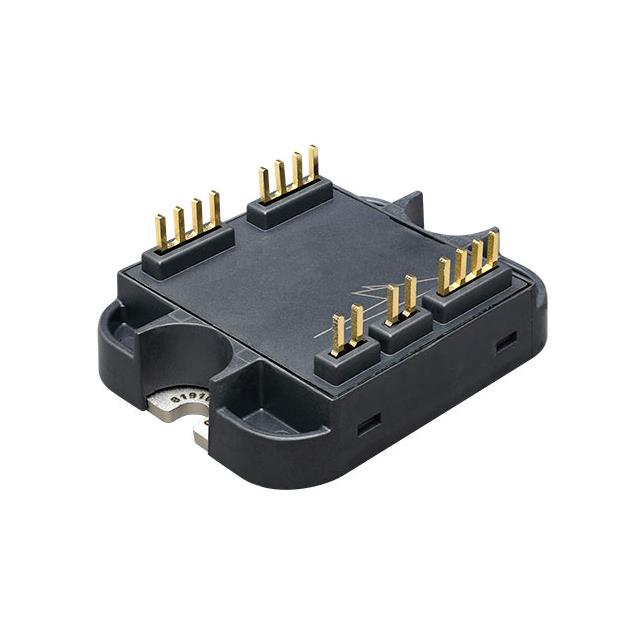

CAB003M09DM3
Wolfspeed, Inc.
Package: Bulk
Description: MOSFET 2N-CH 900V 518A MODULE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | Silicon Carbide (SiC) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 1.163kW (Tc) |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 3.5V @ 130mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.25mOhm @ 400A, 15V |
| Supplier Device Package | Module |
| Gate Charge (Qg) (Max) @ Vgs | 840nC @ 15V |
| Drain to Source Voltage (Vdss) | 900V |
| Input Capacitance (Ciss) (Max) @ Vds | 20.4pF @ 900V |
| Current - Continuous Drain (Id) @ 25°C | 518A (Tc) |
