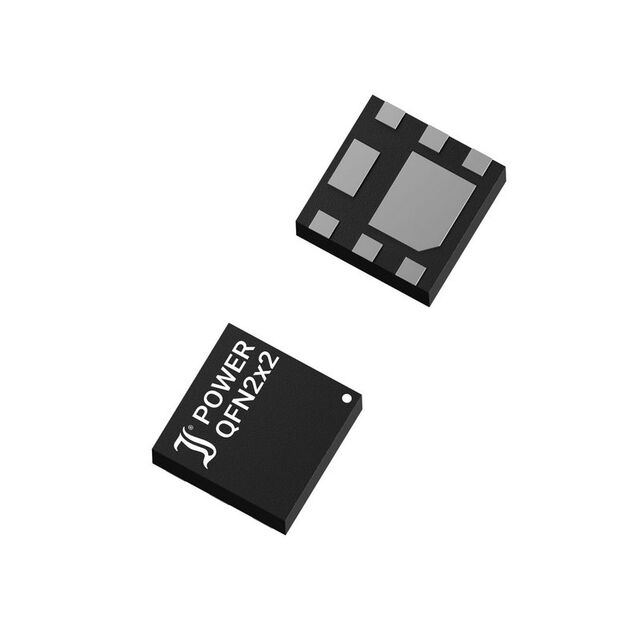

DI2A8N03PWK2-AQ
Diotec Semiconductor
Package: Bulk
Description: MOSFET 2N-CH 30V 2.8A 6QFN
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 1W (Ta) |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 6-UDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1.2V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 2A, 4.5V |
| Supplier Device Package | 6-QFN (2x2) |
| Gate Charge (Qg) (Max) @ Vgs | 6.8nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 387pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 2.8A (Ta) |
