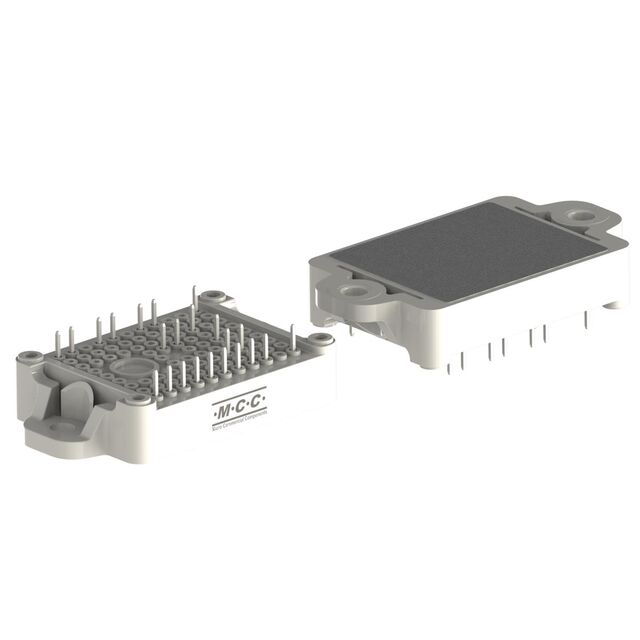

MIF100R12C1TL-BP
MCC (Micro Commercial Components)
Package: Tape & Reel (TR)
Description: GBT MODULES
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench |
| Part Status | Active |
| Power - Max | 785 W |
| Configuration | Half Bridge Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | C1 |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 100A |
| Current - Collector (Ic) (Max) | 100 A |
| Input Capacitance (Cies) @ Vce | 7430 pF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
